Diabetes: EDA & Modeling

EDA
ML
Health
Exploratory analysis and baseline models on a diabetes dataset with emphasis on feature hygiene and class balance.

Problem

Investigated factors associated with diabetes progression to inform preventative care.

Data

Used the publicly available dataset of patient measurements from the UCI repository.

Approach

  • Cleaned outliers and imputed missing values
  • Visualized relationships among clinical variables
  • Trained logistic regression and random forest classifiers

Results

The tuned random forest reached 82% accuracy and highlighted BMI and glucose as key features.

Pair Plot of Features

Pairwise relationships between key health features (glucose, BMI, age, etc.) with diabetes outcome. Highlights clusters and potential separability between classes.

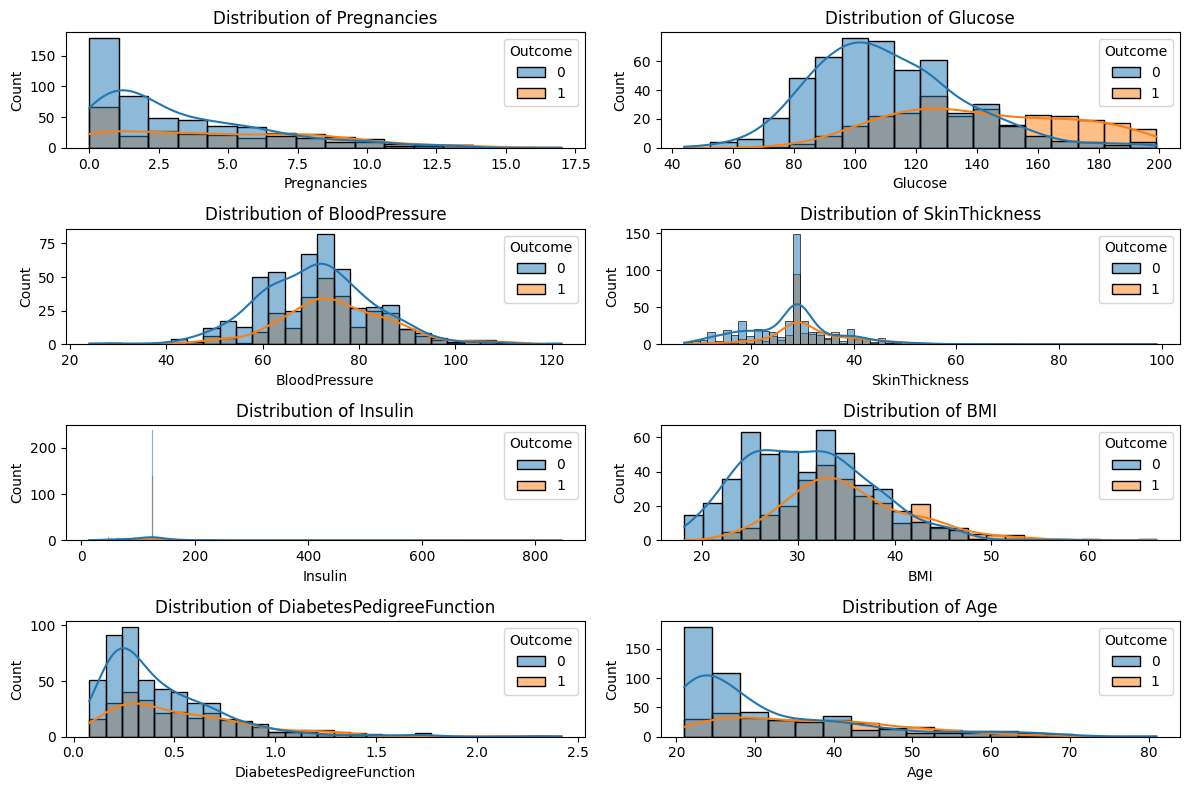

Feature Distributions by Outcome

Distribution of each feature split by diabetes diagnosis. Shows clear separation for glucose and BMI between positive and negative cases.

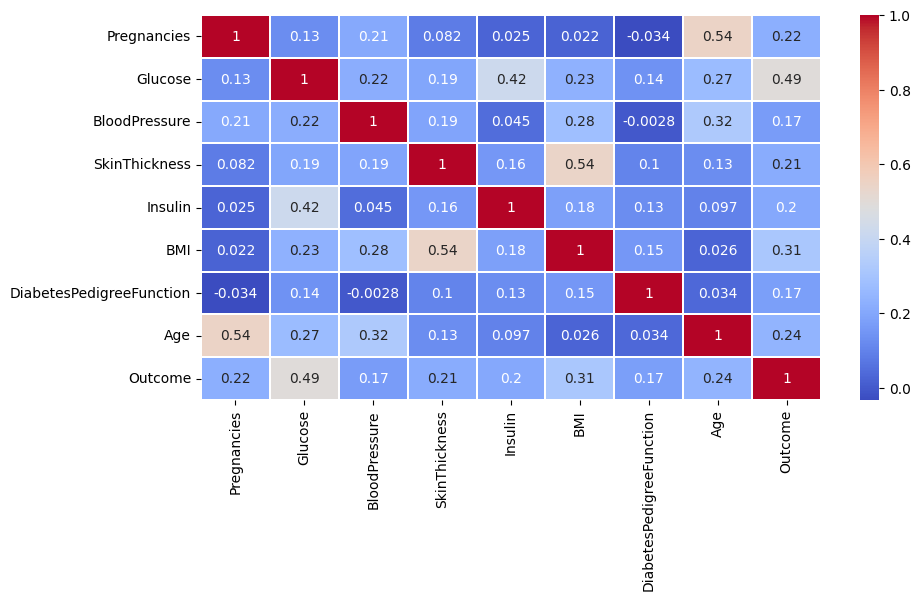

Correlation Heatmap

Correlation matrix of all features with outcome. Glucose and BMI show the strongest relationships with diabetes.

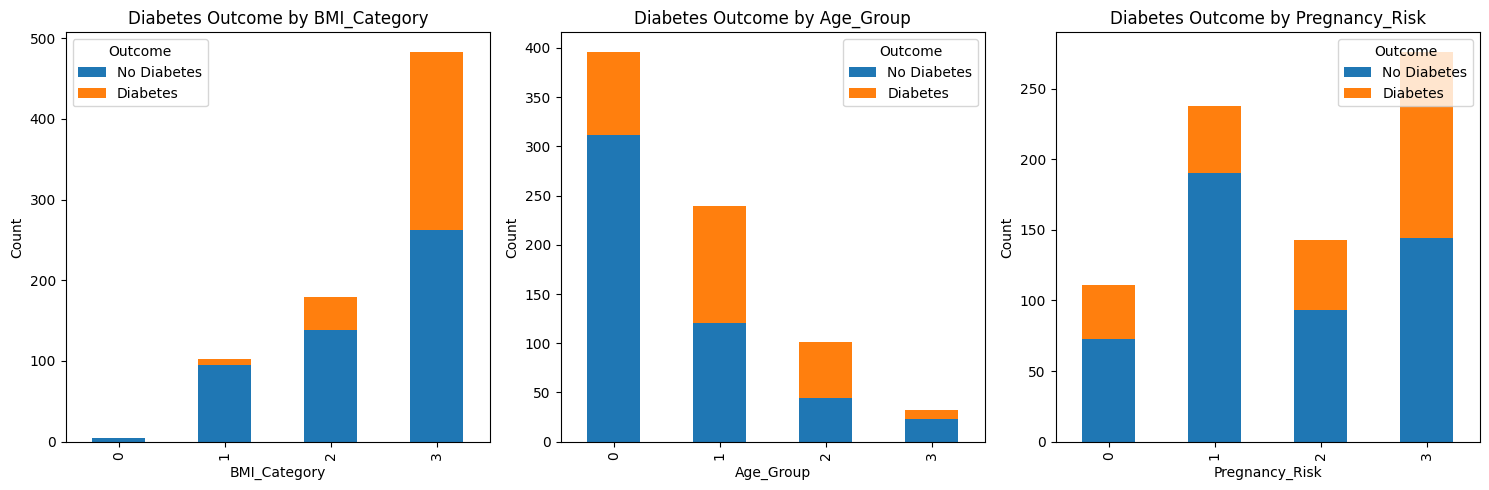

Outcome by BMI, Age, and Pregnancy Risk

Grouped analysis of diabetes outcome by BMI category, age group, and pregnancy risk. Obesity and higher pregnancy counts correlate with greater diabetes prevalence.

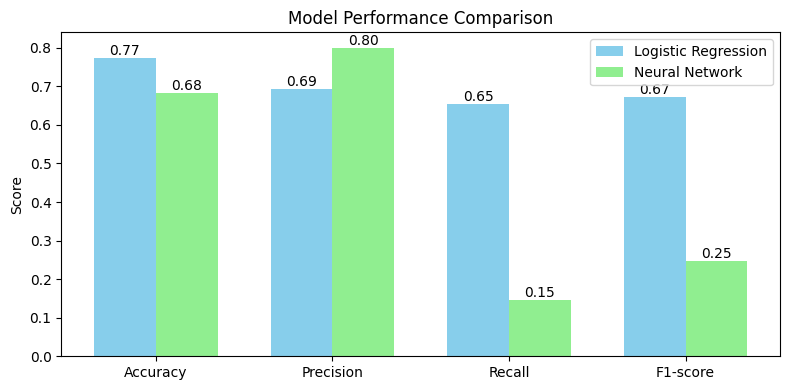

Model Performance Comparison

Comparison of Logistic Regression vs Neural Network models. Logistic Regression provides balanced performance, while Neural Network struggles with recall and F1-score.

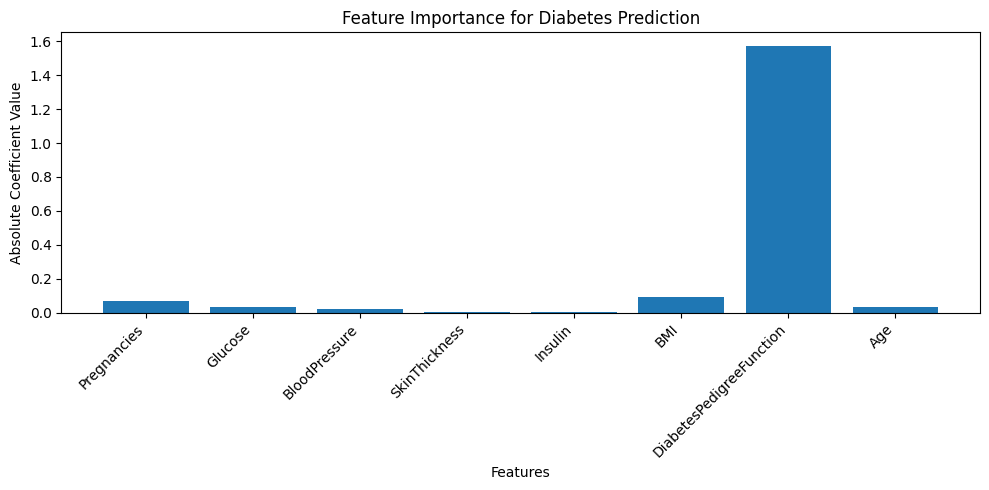

Logistic Regression Feature Importance

Feature importance from logistic regression coefficients. Diabetes Pedigree Function and BMI emerge as top predictors.

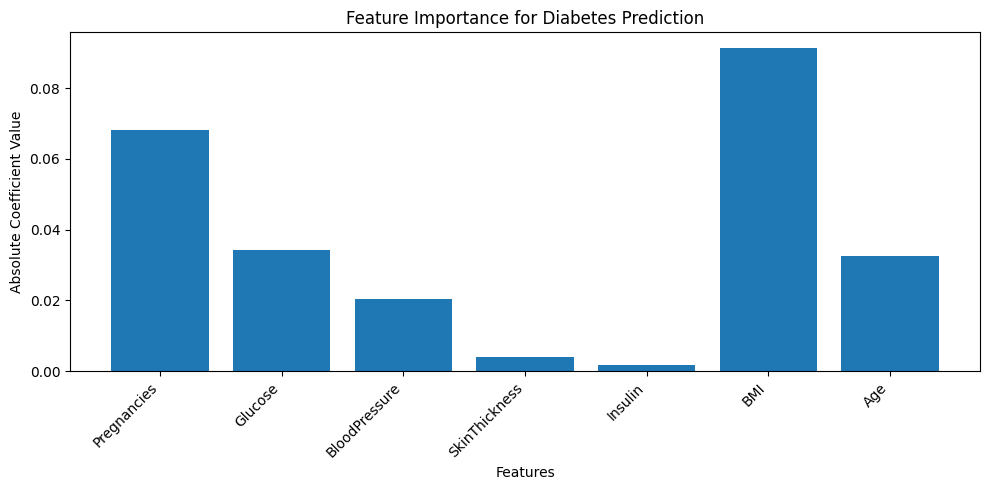

Neural Network Feature Importance

Neural network feature importance analysis. BMI, pregnancies, and glucose are the dominant drivers of prediction.
